The LHVB adjustable feet are manufactured in (ZCS) Zinc Plated Steel and have a DIN 558-4.6-A2F swivel screw with a hexagonal base and an inclination range of between 10º and 13º, according to reference. They offer a secure connection thanks to a T20 Torx screw (max. torque 3.4 Nm) that fixes the base with the screw.
Regarding the base, there are two options depending on the reference: without holes and with two holes that allow it to be screwed and firmly fixed to the ground (references ending in H).

These feet can hold around 650 kg, although we always recommend maintaining a safety margin. The feet must be adjusted without load and we do not recommend their use as sliders, but rather as static elements.

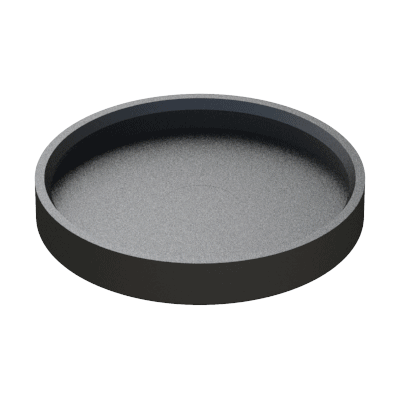

If you need to protect the surface from possible scratches/bumps, we suggest attaching the protective cap LKB, manufactured in (LDPE) Low-density polyethylene.

We offer special configurations upon request:

* Other lengths and thread measurements.
* Base in (SS) Stainless Steel.
* Hexagonal slot for Allen key at the upper end of the thread.

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
